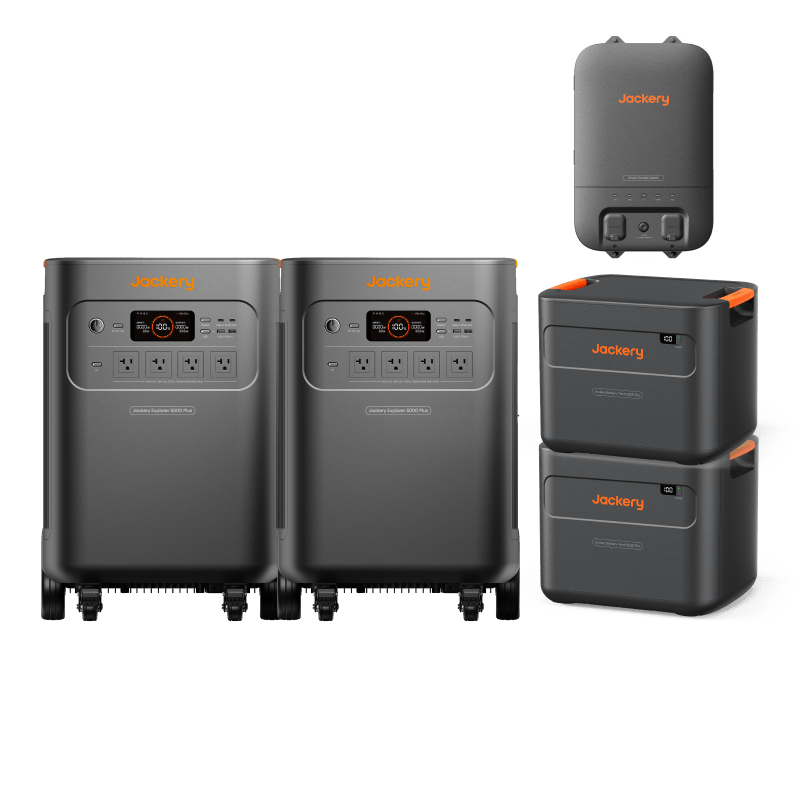

Jackery Solar Generator 5000 Plus



Jackery E5000+ STS + 500X×2 solar generator bundle includes: 1Explorer 5000 Plus + 1Smart Transfer Switch + 2*SolarSaga 500X.

The most powerful essential home backup solution in the lineup — circuit-level whole-home backup paired with high-output bifacial solar. The Jackery Solar Generator 5000 Plus pairs the Explorer 5000 Plus portable power station with the Jackery Smart Transfer Switch and two SolarSaga 500X Bifacial Solar Panels — giving you automatic, hands-free home backup that can run major appliances at 120V or 240V, recharge from the sun, and seamlessly take over the moment the grid drops. Designed for whole-home essential backup, severe-weather preparedness, off-grid living, RV adventures, and remote-work/medical-device reliability. Built to Jackery's trusted quality and safety standards.

With a 5,040Wh LiFePO₄ (Lithium Iron Phosphate) battery, 7,200W AC pure sine wave output (14,400W surge), expandable up to 60kWh, dual-voltage 120V/240V output, and 0ms UPS switchover via the Smart Transfer Switch, the Solar Generator 5000 Plus is built to keep your fridge, lights, Wi-Fi, HVAC, water heater, microwave, induction cooktop, medical equipment, and even a 5-ton AC running through extended outages — or to deliver high-wattage power anywhere you need it.

Key Features

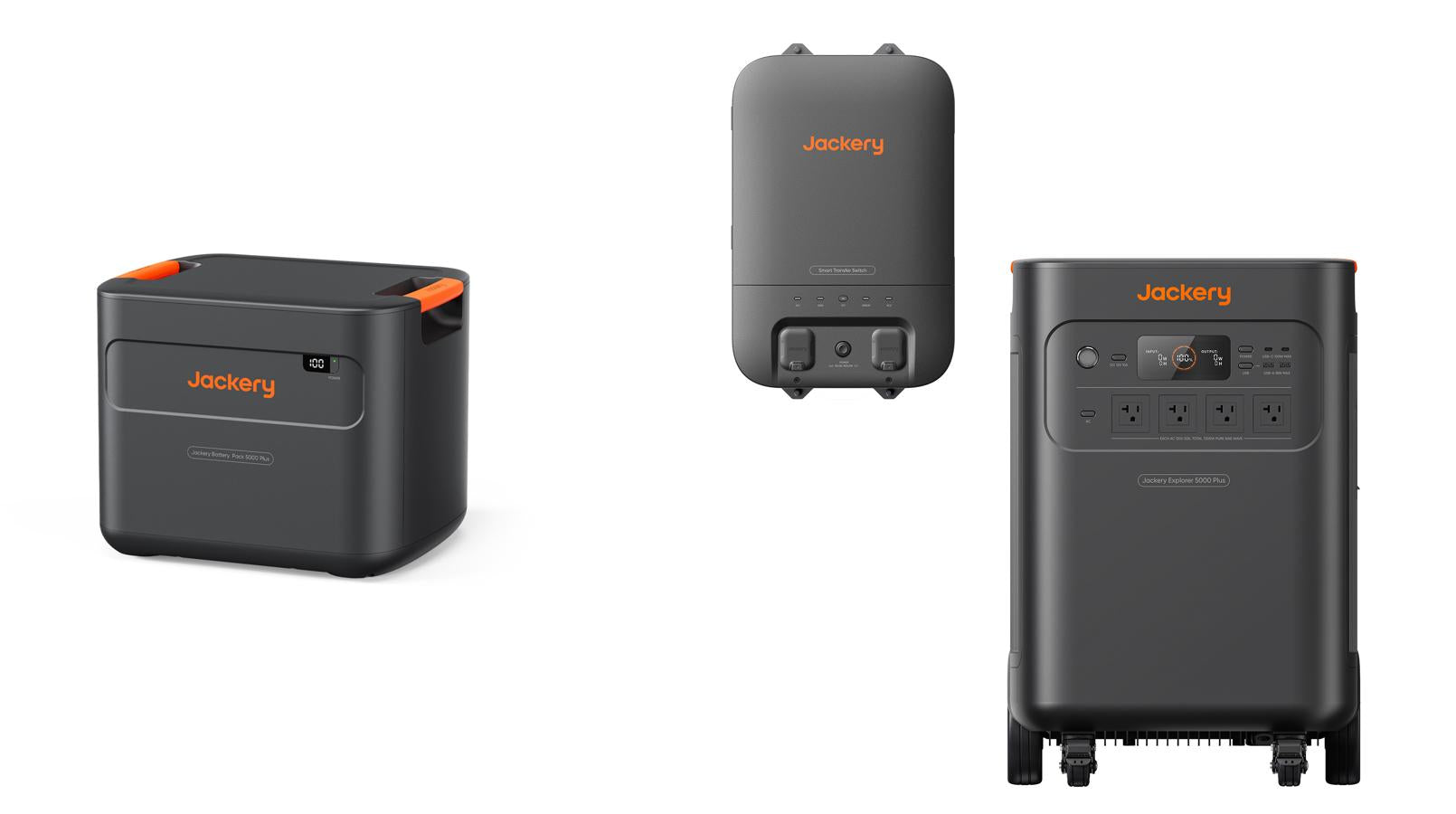

All-in-one whole-home backup, ready out of the box — Includes the Explorer 5000 Plus power station, Smart Transfer Switch, 2 × SolarSaga 500X Bifacial Solar Panels, AC charging cable, and MC4 wrench.

Circuit-level home backup with the Smart Transfer Switch — Pair with the Jackery 60A Smart Transfer Switch to power up to 12 circuits at 120V or 6 circuits at 240V from your home's sub-panel. Each circuit supports appliances up to 240V/30A and 7200W. Both 120V and 240V circuits can run simultaneously.

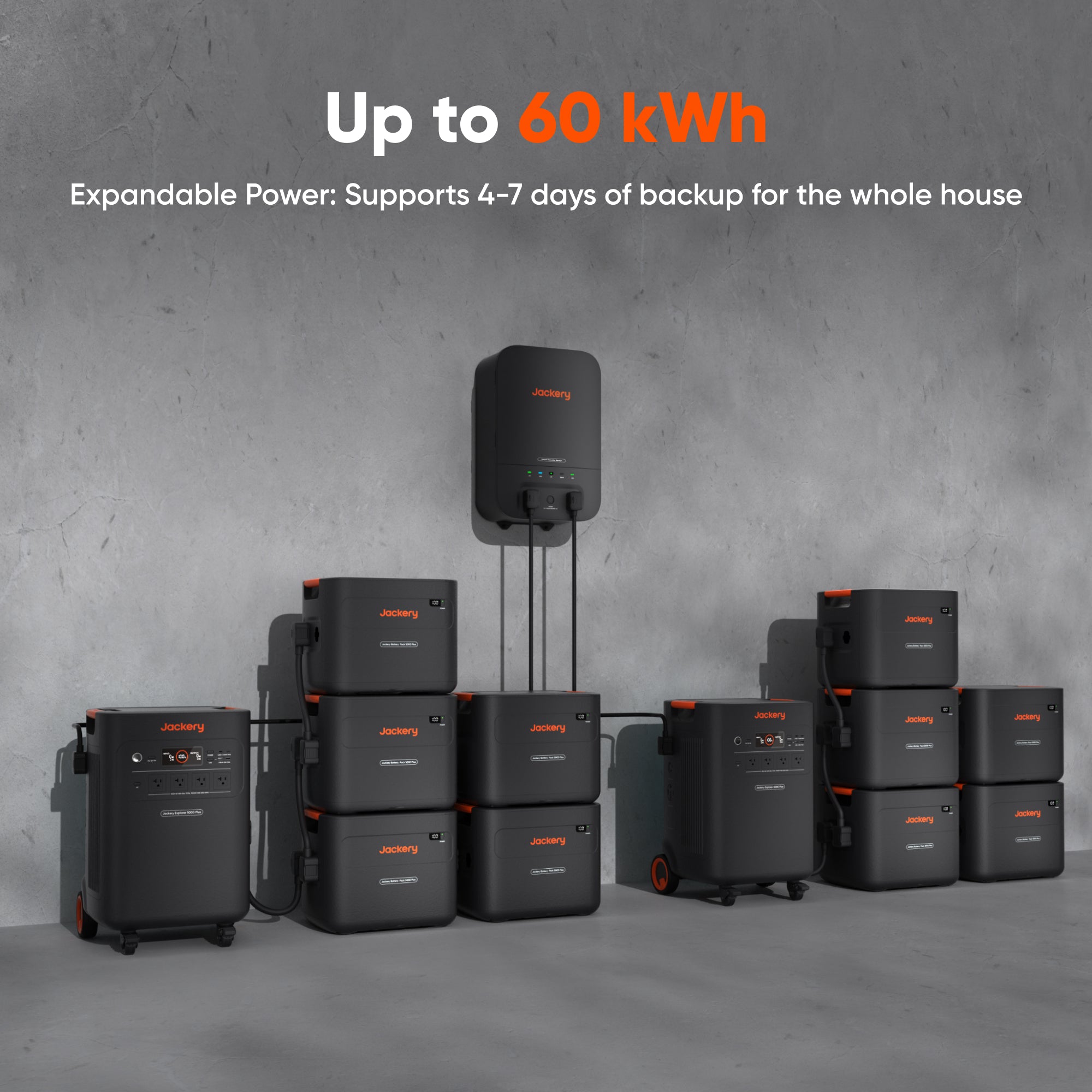

5,040Wh capacity, expandable up to 60kWh — Enough to keep your home running through an extended outage, not just overnight. Pair with battery packs or a second Explorer 5000 Plus via the STS to expand both capacity and output power.

7,200W AC output (14,400W surge), dual-voltage 120V/240V — Run major home appliances including a 5-ton AC, water heater, induction cooktop, refrigerator, microwave, and TV without circuit overloads.

0ms UPS switchover — When connected via the Smart Transfer Switch, backup power switches over instantaneously (0 ms), keeping sensitive electronics like computers, medical equipment, and remote-work setups running without interruption.

10-year automotive-grade LiFePO4 battery life — 4,000 charge cycles to ≥70% capacity (~11-year theoretical service life). Engineered with ceramic battery cells tested up to 302°F (150°C) and strong performance down to -4°F (-20°C) for safe operation in any climate.

ChargeShield™ technology — Combines 62 BMS protection algorithms, dual cell protection, and AI variable charging speed for safer, more reliable charging. Includes surge protection up to 2000V and UL-certified fire safeguards.

Ultra-fast hybrid recharging — Recharge fully in as little as 1.7 hours via hybrid AC + solar through the Smart Transfer Switch. Standard wall outlet: ~3.5 hours. Two SolarSaga 500X panels: ~6.5 hours of solar charging. Compatible with both high- and low-voltage solar panels with up to 4000W solar input.

Bifacial 500W solar panels with 25% cell efficiency — Each SolarSaga 500X is built from 6 × SolarSaga 85W bifacial panels that capture sunlight from both sides for maximum energy generation. IP68-rated for outdoor durability and easily secured with screws, straps, or ropes for rooftop, balcony, or ground-mount installation.

Quiet operation — Operates at just 30 dB in Quiet Mode and only 51.7 dB at full load (measured at 1 meter), making it indoor-safe and far quieter than a gas generator.

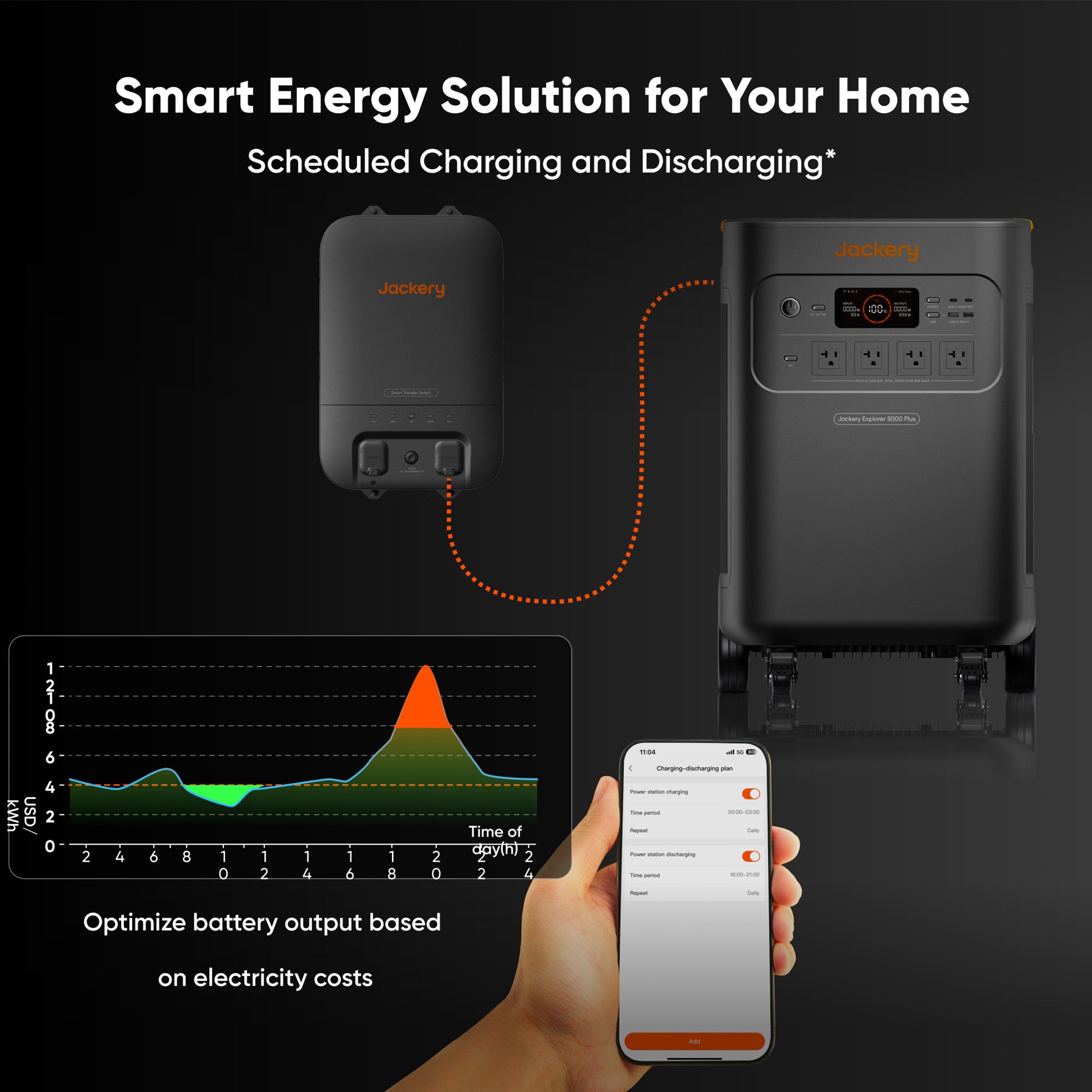

Smart App control — Monitor performance in real-time and manage power through the Jackery Smart App. The Smart Transfer Switch supports real-time monitoring and energy management, including charging/discharging mode to help reduce electricity costs by leveraging off-peak grid rates and stored solar energy.

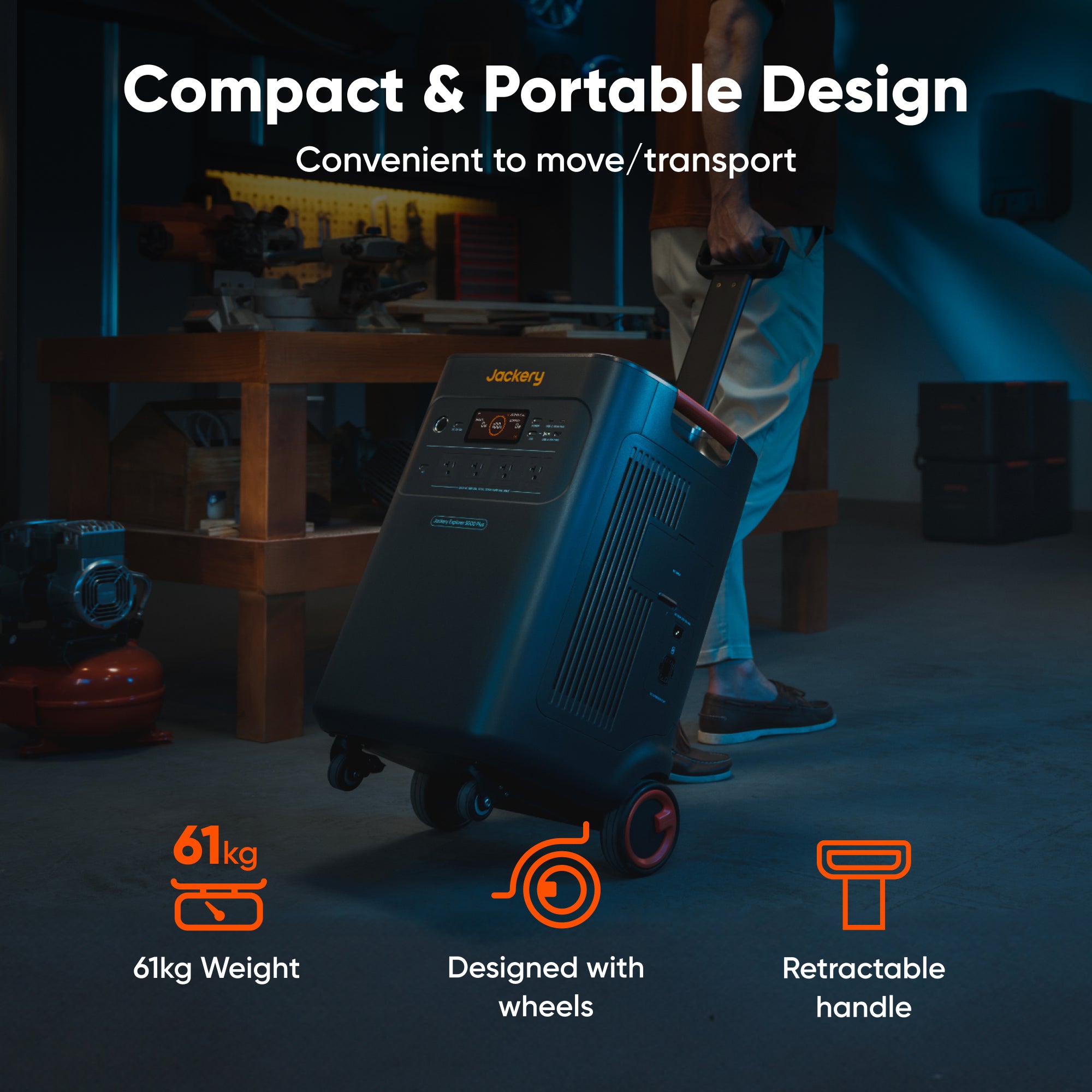

Built for portability despite size — The lightest in the 5kWh segment, with double wheels and a pull rod for easy movement around the home or to the RV.

Eco-friendly & silent — Zero-emission, fume-free operation safe for indoor use during hurricanes, heatwaves, thunderstorms, or extended grid failures. Maintenance-free.

Tax credit eligible — Apply for the Residential Clean Energy Credit on qualifying Jackery solar generator systems (verify eligibility with your utility provider).

5-year warranty — 3-year standard + 2-year extended warranty (auto-applied with registration on Jackery.com).

Perfect For

Whole-home essential backup during outages, severe-weather preparedness (hurricanes, heatwaves, winter storms, thunderstorms), households with medical equipment (CPAPs, oxygen concentrators), remote workers needing uninterrupted power, off-grid cabins, extended RV adventures (multi-day trips), contractors and worksites needing high-wattage portable power, and homeowners looking to lower monthly electricity bills by leveraging stored solar energy and off-peak grid rates.

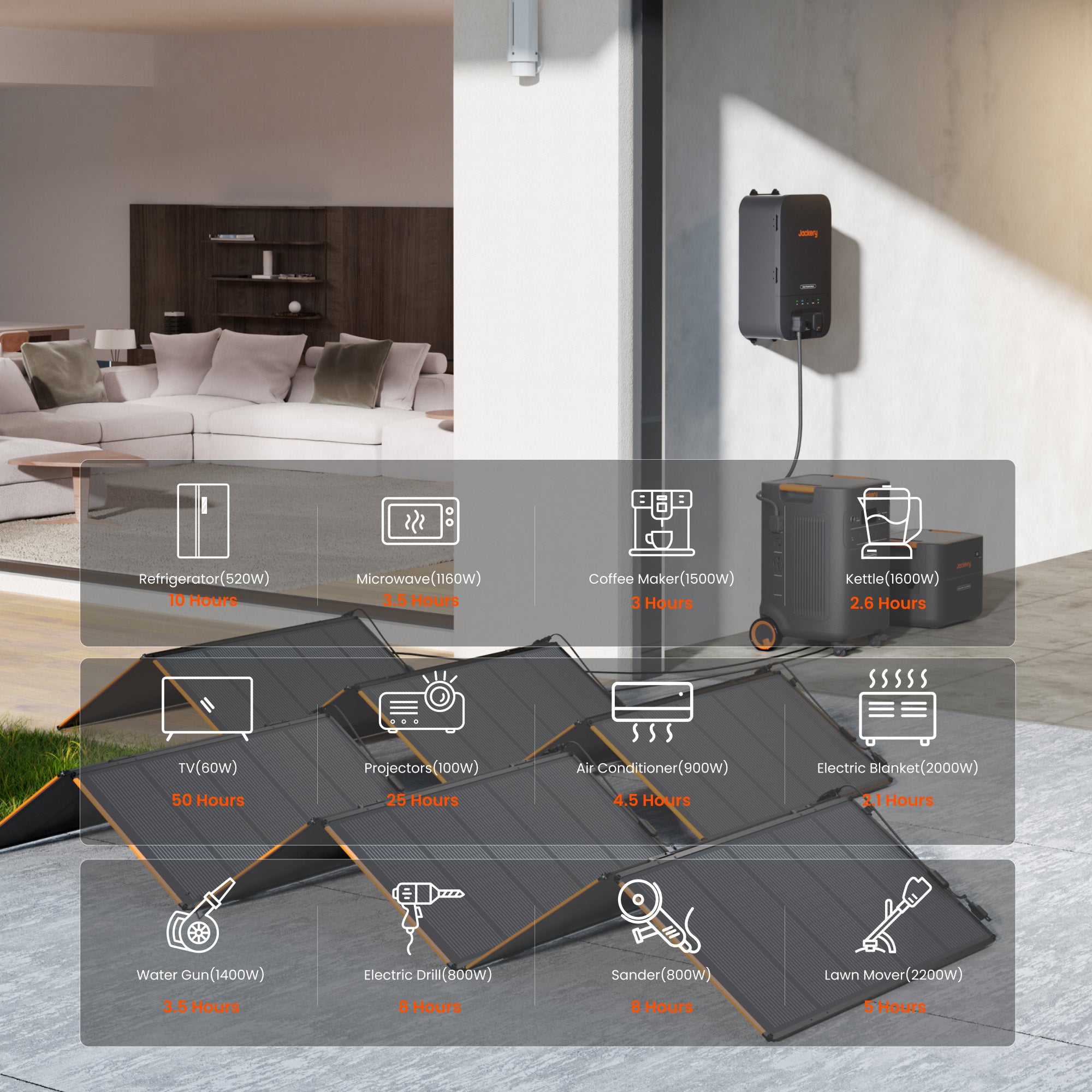

What Will It Run?

The 7,200W output (14,400W surge) with 120V/240V dual-voltage handles virtually all household appliances. Typical capabilities:

Refrigerator + Wi-Fi + lights + fans — Multiple days of essential backup Microwave (1000W) — Run normally Induction cooktop — Supported Water heater (240V) — Supported 5-ton Central Air Conditioner (240V) — Supported TV, computer, projector, speakers — Long runtimes Power tools and worksite equipment — Stable high-wattage output RV essentials — Up to ~3 days of off-grid power depending on usage

Note: Input power must not exceed 14,400W. Solar input cannot exceed 4,000W.

What's in the Box

• 1 × Jackery Explorer 5000 Plus Portable Power Station
• 2 × Jackery SolarSaga 500X Bifacial Solar Panels (each contains 6 × SolarSaga 85W panels)
• 1 × Jackery Smart Transfer Switch
• 1 × AC Charging Cable
• 1 × MC4 Wrench
• 1 × Power Input/Output Cable
• 2 × Wall Brackets (for STS)
• 4 × M4 Phillips Flat Head Screws (for STS)
• 1 × Marking-off Template (for STS installation)
• 2 × Solar Charging Cables (for SolarSaga 500X panels)
• 2 × Storage Bags (for SolarSaga 500X panels)
• 10 × Hinges, 8 × Ground Stakes, Hex Key, 40 × Screws, 2 × Anderson Rubber Plugs, Compass Carabiner (for SolarSaga 500X assembly)
• 1 × User Manual

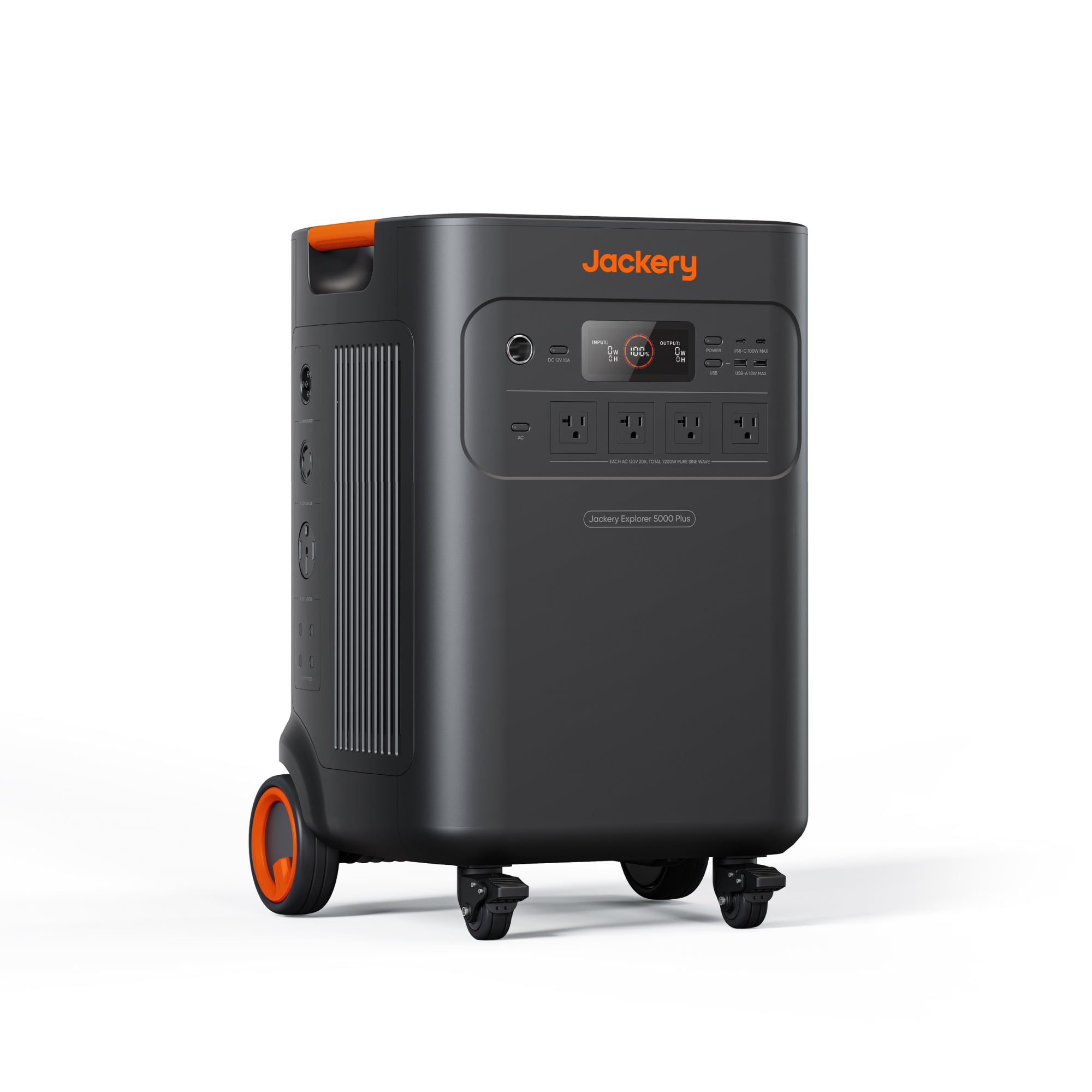

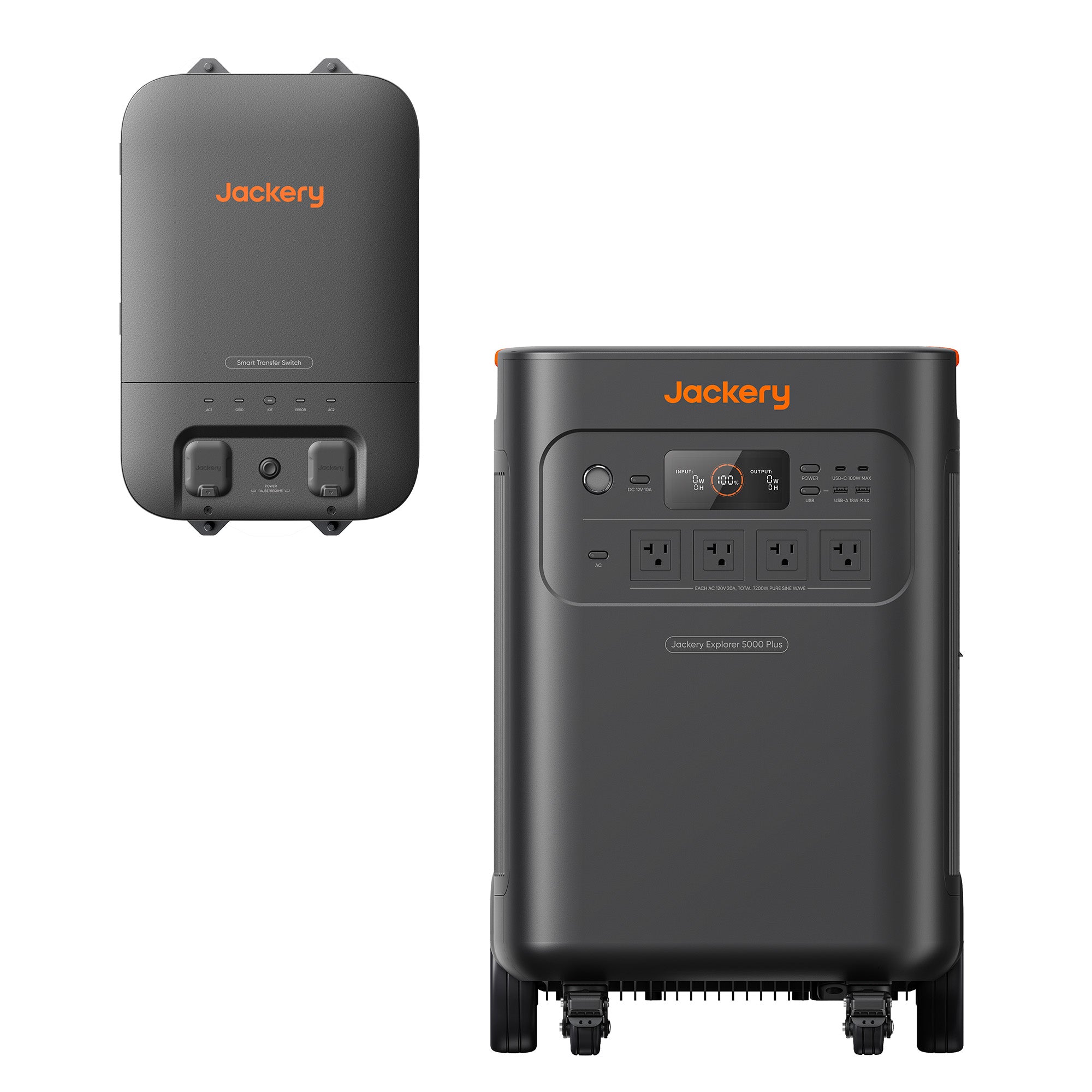

Jackery Explorer 5000 Plus Portable Power Station

The Jackery Explorer 5000 Plus is a high-capacity portable power station designed for essential home backup and versatile outdoor use. Boasting a 5040Wh capacity and a powerful 7200W rated output (with a 14,400W surge), it is capable of running heavy-duty appliances such as 5-ton air conditioners and water heaters. The unit utilizes a durable LiFePO4 battery with an expected 11-year lifespan and features a 0ms UPS switching capability to ensure critical electronics remain powered during sudden outages without interruption. Designed for flexibility, it can be recharged via solar panels in approximately 2 hours or integrated directly into home circuits using a smart transfer switch to power up to 12 individual 120V circuits.

• Battery Capacity — 5,040Wh
• Battery Cell Chemistry — Automotive-grade Lithium Iron Phosphate (LiFePO4) with ceramic cells
• Lifecycle — 4,000 cycles to ≥70% capacity (~10–11 year service life)

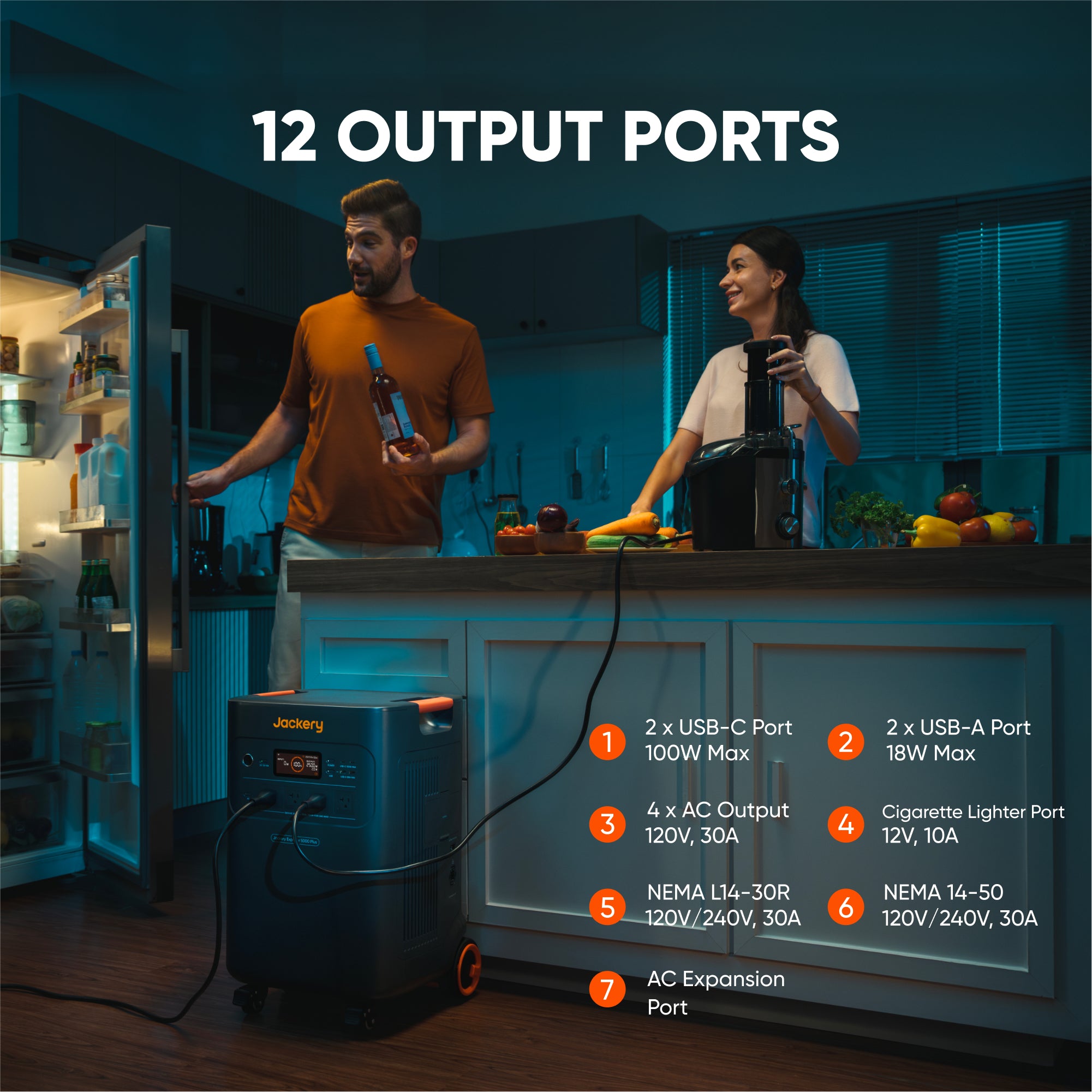

• AC Output — 120V / split-phase 240V 60Hz, 7,200W rated, 14,400W surge (Pure Sine Wave)
• Dual-Voltage Support — 120V and 240V simultaneously
• Expandable Capacity — Up to 60kWh with battery packs and parallel 5000 Plus units
• Parallel Operation — Supports up to 2 × Explorer 5000 Plus units via STS
• Solar Input — Up to 4,000W; supports both high- and low-voltage panels
• DC Input (Low-PV) — 2× DC 8mm Ports: 16V–60V⎓10.5A Max (double to 21A / 1200W Max); 11V–16V⎓8A Max (double to 8A Max)
• Recharge Times — AC wall: ~3.5 hours · Hybrid AC + solar via STS: ~1.7 hours · 2× SolarSaga 500X: ~6.5 hours
• UPS Switchover — 0 ms (with Smart Transfer Switch)
• Operating Temperature — Tested up to 302°F (150°C); strong performance down to -4°F (-20°C)
• Surge Protection — Up to 2,000V
• Noise Level — 30 dB Quiet Mode / 51.7 dB at full load (measured at 1m)
• App Connectivity — Wi-Fi + Bluetooth (Jackery Smart App for iOS / Android)
• Portability — Double wheels + pull rod
• Certifications — UL Certified, fire safeguards, FCC, CE
• Warranty — 3-year + 2-year extended (5 years total with registration)

Jackery SolarSaga 500X Bifacial Solar Panel (×2)

Peak Power — 500W per panel (1,000W total in bundle)
Module Construction — 6 × SolarSaga 85W bifacial panels per SolarSaga 500X
Solar Cell Type — Monocrystalline bifacial
Cell Conversion Efficiency — Up to 25%
Bifacial Design — Captures sunlight from both sides for maximum output
Waterproof Rating — IP68
Installation — DIY setup with screws, straps, or ropes — suitable for rooftops, balconies, or ground-mount
Connector — DC8020 output
Note — Do not connect more than six 85W panels in parallel to a single DC8020 input port
Warranty — Aligned with bundle warranty (3+2 years with registration)

Compatibility Notes

The two SolarSaga 500X panels included in this bundle plug directly into the Explorer 5000 Plus's DC inputs — no extra adapters required. The Smart Transfer Switch is exclusively compatible with the 5000 Plus series and requires professional installation by a licensed electrician via the home's sub-panel; complete the online STS Installation Request Form after purchase to initiate the installation process. The Explorer 5000 Plus and Explorer 2000 Plus can charge each other by connecting AC input to AC output but do not support parallel operation; the 5000 Plus only supports parallel use with another 5000 Plus unit via the STS, not with other Jackery models or third-party power stations. Mixing different models or wattages of solar panels is not recommended; connecting more than two solar panels simultaneously requires the Jackery Solar Panel Connector (sold separately).

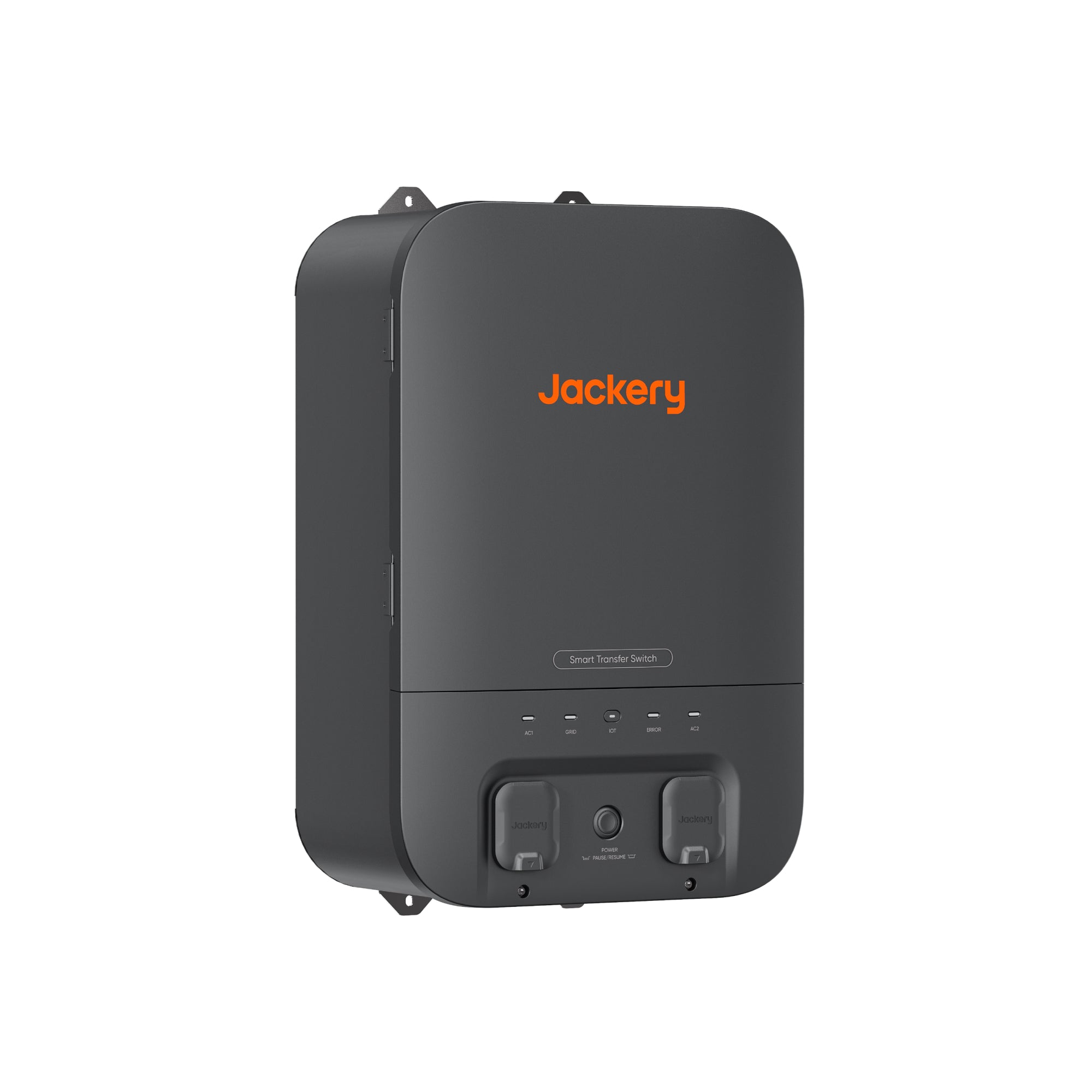

Jackery Smart Transfer Switch

Compatibility — Jackery Explorer 5000 Plus only (supports up to 2 units simultaneously)
Input — Split-phase 240V required
Output — 120V 60Hz and split-phase 240V 60Hz (three-phase not supported)
Circuit Capacity — Up to 12 circuits at 120V OR 6 circuits at 240V; both can run simultaneously
Per-Circuit Rating — Up to 240V / 30A / 7,200W per circuit
Switchover Speed — 20ms (instantaneous UPS-grade)
Installation — Indoor only (not waterproof); professional electrician required
App Control — Real-time monitoring and energy management via Jackery Smart App
Limitations — Cannot feed energy from power station or solar back into the grid; cannot directly connect to rooftop solar panels
Maintenance — Maintenance-free
Warranty — Aligned with 5000 Plus warranty terms

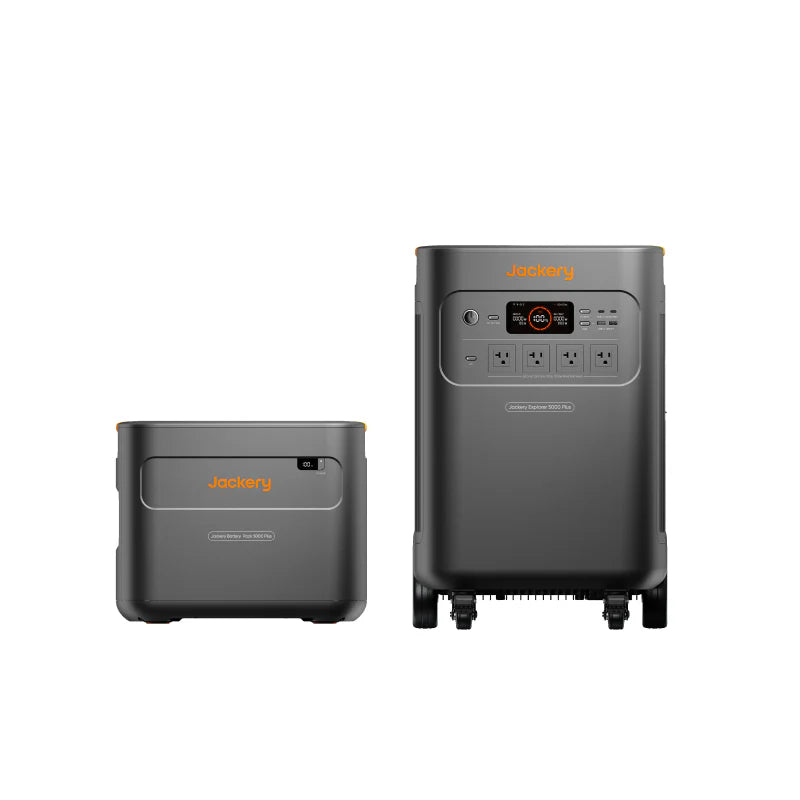

Explorer 5000 Plus Battery Pack

The Jackery Battery Pack 5000 Plus is a dedicated 5,040Wh LiFePO4 expansion battery built to plug directly into the Jackery Explorer 5000 Plus Portable Power Station — adding an extra 5kWh of usable capacity per pack and scaling your essential home backup system all the way up to 60kWh for multi-day outage protection. Powered by automotive-grade lithium iron phosphate cells with 4,000+ charge cycles to ≥70% capacity, advanced CTB (Cell-to-Body) structural technology for a compact yet durable build, UL1973-certified safety with an intelligent BMS, low-temperature indoor performance down to -15°C (5°F), a reversible port design, dual-handle transport, and a real-time smart display, the Battery Pack 5000 Plus extends runtime for refrigerators, HVAC, water heaters, medical equipment, and other critical loads — perfect for extended outages, off-grid cabins, RV adventures, and modular solar storage systems. Backed by Jackery's 5-year warranty (3-year + 2-year extended with registration). Note: Compatible only with the Jackery Explorer 5000 Plus.
